Cisco SFP-LH-SMD Compatible 1000BASE-LH 1310nm SMF 10km SFP Transceiver Module

Name: Cisco SFPLHSMD Compatible 1000BASELH 1310nm SMF 10km SFP Transceiver Module
Brand: Mray
Price: 4 USD

Buy cheap Cisco SFP-LH-SMD Compatible 1000BASE-LH 1310nm SMF 10km SFP Transceiver Module product

Brand Name : Mray

Model Number : SFP-GE-LX10

Certification : CE, FCC, RoHs, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : USD4-9/piece

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/day

Delivery Time : 1~2 days for samples

Packaging Details : 10pcs/plastic try, 500pcs per standard export carton

Product name : Cisco SFP-LH-SMD Compatible 1000BASE-LH 1310nm SMF

Rate : 1.25Gb/s

Wavelength : 1310nm

Reach : 10km

Power supply : +3.3V

Warranty : 3 Years

Contact Now

Cisco SFP-LH-SMD Compatible 1000BASE-LH 1310nm SMF 10km SFP Transceiver Module

Description

Miray's SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Features

Operating Data Rate up to 1.25Gbps
Single 3.3V Power Supply
Hot-Pluggable SFP Footprint Duplex LC Connector Interface
Class 1 FDA and IEC60825-1 Laser Safety Compliant
Operating Temperature: Com.0°C ~+70°C/Ind.:-40°C ~+85°C /Ext.:-20°C ~+70°C
Compliant with MSA SFP Specification
Compliant with SFF-8472

Applications

Gigabit Ethernet Switches and Routers
Fiber Channel Switch infrastructure
XDSL Applications
Metro Edge Switching

Recommended Operating Environment

Parameter		Symbol	Min.	Typical	Max.	Unit
Case operating Temperature	Industrial	T_C	-40		85	°C
	Extended		-5		85	°C
	Commercial		0		+70	°C
Supply Voltage		V_CC	3.135		3.465	V
Supply Current		Icc			300	mA
Inrush Current		I_surge			Icc+30	mA
Maximum Power		P_max			1	W

Optical Parameters(T_OP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	λ_c	1270	1310	1360	nm
Spectral Width(RMS)	σ_RMS			3	nm
Optical Output Power	P_out	-9		-3	dBm	1
Extinction Ratio	ER	8.2			dB
Optical Rise/Fall Time	t_r / t_f			260	ps	2
Relative Intensity Noise	RIN			-120	dB/Hz
Output Eye Mask	Compliant with IEEE802.3 z (class 1 laser safety)
Receiver Section:
Optical Input Wavelength	λ_c	1260		1360	nm
Receiver Overload	P_ol	-3			dBm	4
RX Sensitivity	Sen			-24	dBm	4
RX_LOS Assert	LOS_A	-35			dBm
RX_LOS De-assert	LOS_D			-25	dBm
RX_LOS Hysteresis	LOS _H	0.5			dB
General Specifications:
Data Rate	BR		1.25		Gb/s
Bit Error Rate	BER			10^-12
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s	L_MAX		10		km
Total System Budget	LB	15			dB

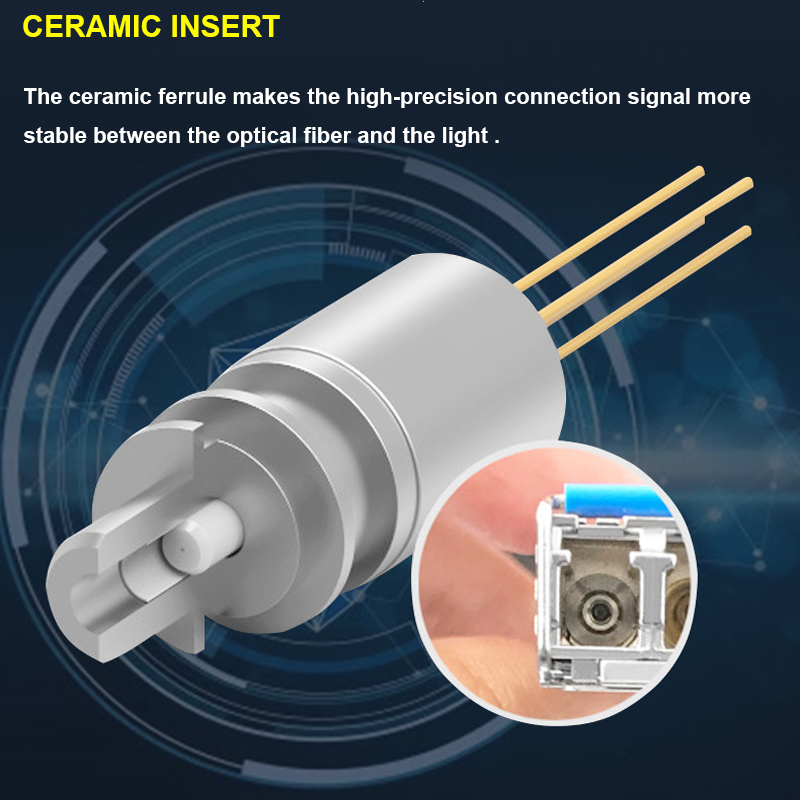

Product Show

Cisco SFP-LH-SMD Compatible 1000BASE-LH 1310nm SMF 10km SFP Transceiver Module

Dimension

Product Packing

Compatibility Test

Cisco SFP-LH-SMD Compatible 1000BASE-LH 1310nm SMF 10km SFP Transceiver Module

Compatible Brands

Production Process

Product Details

For more details, welcome to inquire us freely.
