Huawei Compatible 100base Sx Sfp 850nm 550m Ddm

Name: Huawei Compatible 100base Sx Sfp 850nm 550m Ddm
Brand: Mray
Price: 4 USD

Buy cheap Huawei Compatible 100base Sx Sfp 850nm 550m Ddm product

Brand Name : Mray

Model Number : GE-SX-MM850

Certification : CE, FCC, RoHs, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : USD4-9/piece

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/day

Delivery Time : 1~2 days for samples

Packaging Details : 10pcs/plastic try, 500pcs per standard export carton

Product name : 1000BASE-SX SFP 850nm 550m DDM

Data Rate : 1.25Gb/s

Distance : 0.55KM

Fiber type : MMF

Power supply : +3.3V

Warranty : 3 Years

Application : Telecommunication

Operating temperature : -40℃ to +85℃,0~70

Contact Now

Huawei SFP-1.25G-SX COMPATIBLE 1000BASE-SX SFP 850nm 550m DDM

Description

Miray's Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

Features

100% Optically Inspected and Tested to be compatible.
MMF, 850nm, 550m, LC, DOM
1000BASE-SX SFP Optics
ROHS Compliant.

Applications

Gigabit Ethernet/Fast Ethenet
Fiber Channel
SDH/SONET/ATM
Switch to Switch interface
Router/Server interface
Other optical transmission systems

Recommended Operating Conditions

Parameters	Symbol	Min.	Typ.	Max.	Unit
Case Operating Temp. (GE-SX-MM850)	TOP	0	-	+70	°C
Case Operating Temp. (GE-SX-MM850i)	TOP	-40	-	+85	°C
Supply Voltage	VCC	+3.13	+3.3	+3.47	V
Supply Current (GE-SX-MM850)	ICC			230	mA
Supply Current (GE-SX-MM850i)	ICC			260	mA

Transmitter Electro-optical Characteristics

VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (GE-SX-MM850); TOP = -40 °C to 85 °C (GE-SX-MM850i)

Parameters	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Date Rate	DR	1.0625	1.25		Gb/s
Optical Launch Power	Po	-9		-3	dBm	1
Optical Center Wavelength	λc	830	850	870	nm
Spectral Width (RMS)	Δλ			0.85	nm
Optical Extinction Ratio	ER	9			dB
Optical Eye Mask		IEEE802.3z
Relative Intensity Noise	RIN			-117	dB/Hz
Differential Data Input Swing	VIN	180		1200	mV
TX Disable Input Voltage-Low (TX ON)	TDISVL	GND		0.8	V
TX Disable Input Voltage-High (TX OFF)	TDISVH	2.0		Vcc	V
TX Fault Output Voltage-Low (TX Normal)	TFLTVL	GND		0.8	V
TX Fault Output Voltage-High (TX Fault)	TFLTVH	2.0		Vcc	V

Receiver Electro-optical Characteristics

VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (GE-SX-MM850); TOP = -40 °C to 85 °C (GE-SX-MM850i)

Parameters	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Date Rate	DR	1.0625	1.25		Gb/s
Receiver Sensitivity	PIN_min			-18	dBm	1
Maximum Input Power	PIN_max	-3			dBm	1
Optical Center Wavelength	λc	830	850	870	nm
LOS De-Assert	LOSD			-19	dBm
LOS Assert	LOSA	-38			dBm
LOS Hysteresis	LOSHY	0.5			dB
Differential Data Output Swing	VOUT	600		1000	mV
Receiver LOS Signal Output Voltage-Low	LOSVL	GND		0.8	V
Receiver LOS Signal Output Voltage-High	LOSVH	2.0		Vcc	V

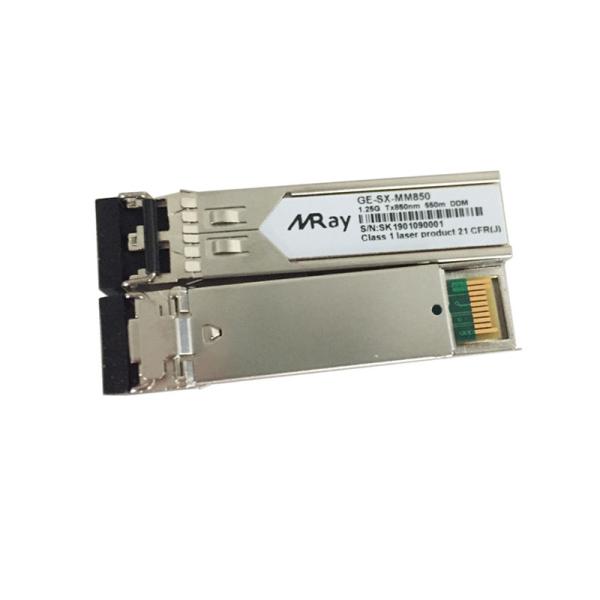

Product Show

Dimension

Product Packing

Compatibility Test

Huawei Compatible 100base Sx Sfp 850nm 550m Ddm

Compatible Brands

Production Flow

Why Choose Us

If you need more information, pls do not hesitate in contacting us: sales@miraycomm.com
