Bidi 10g Sfp+ Er , 10gb Single Mode Sfp Metal Enclosure Lead Free

Name: Bidi 10g Sfp Er 10gb Single Mode Sfp Metal Enclosure Lead Free
Brand: Mray
Price: 1 USD

Buy cheap Bidi 10g Sfp+ Er , 10gb Single Mode Sfp Metal Enclosure Lead Free product

Brand Name : Mray

Model Number : SFP-10G-BX40-SM1330/1270

Certification : CE, FCC, RoHs, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/day

Delivery Time : 1~2 days for samples

Packaging Details : 10pcs/plastic try, 500pcs per standard export carton

Product name : 10G SFP+ BiDi ER 40km LC Simplex Optical Module

Data Rate : 10Gb/s

Wavelength : 1270/1330nm

Distance : 40km

Compatible : Cisco, Juniper, HP, Huawei...

Warranty : 3 Years

Contact Now

10G SFP+ BiDi ER 40km Tx 1330nm Rx 1270nm LC Simplex Optical Module

Description

The Miray SFP-10G-BX40-SM1270 single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The Miray SFP-10G-BX40-SM1330 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; TS-SFP+-BIDI-ER-32 module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.

Features

Hot-pluggable SFP+ footprint
Electrical interface compliant to SFF-8431
Compliant with SFF-8472
10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER
1310nm DFB transmitter, PIN photo-detector
Distance up to 40km on single mode fiber
Duplex LC connector
Built-in digital diagnostic functions
Single 3.3V power supply
Power dissipation < 1.5W
Metal enclosure, for lower EMI
ROHS compliant and lead-free

Applications

10Gbps Ethernet or SONET/SDH switches and routers
10G/8.5G/4.25G/2.125G/1.0625G Fiber Channel
Other 10Gbps optical links

Recommended Operating Environment

Parameter	Symbol	Min.	Typical	Max.	Unit
Case operating Temperature	T_C	-5		+70	°C
Supply Voltage	V_{CCT, R}	+3.135		+3.465	V
Supply Current	I_CC			450	mA
Power Dissipation	P_D			1.5	W

Optical Parameters(T_OP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter			Symbol	Min	Typ	Max	Unit	Ref.
Transmitter
Bit Rate			BR	9.9		11.3	Gb/s
Optical Wavelength	SFP-10G-BX40-SM1270		λ	1260	1270	1280	nm
Optical Wavelength	SFP-10G-BX40-SM1330			1320	1330	1340	nm
Average output power			Po	0		+5	dBm
Optical Extinction Ratio			ER	3.5			dB
Spectral width			Δλ			1	nm
Side Mode Suppression Ratio			SMSR	30			dB
Optical Eye Mask				Compliant with IEEE802.3ae
Receiver
Bit Rate			BR	9.9		11.3	Gb/s
Optical Wavelength		SFP-10G-BX40-SM1270	λ	1320	1330	1340	nm
Optical Wavelength		SFP-10G-BX40-SM1330		1260	1270	1280
Receiver Sensitivity			Sen			-16	dBm	1
Maximum Input Power			P_MAX	0			dBm
LOS De-Assert			LOS_D			-17	dBm
LOS Assert			LOS_A	-27			dBm
LOS Hysteresis			LOS_H	0.5		4	dB

Ordering Information

Ordering Information
Model No.	Description
SFP-10G-BX10-SM1270	10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 10km, LC, DDM
SFP-10G-BX10-SM1310	10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 10km, LC, DDM
SFP-10G-BX20-SM1270	10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 20km, LC, DDM
SFP-10G-BX20-SM1310	10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 20km, LC, DDM
SFP-10G-BX40-SM1270	10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 40km, LC, DDM
SFP-10G-BX40-SM1310	10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 40km, LC, DDM
SFP-10G-BX60-SM1270	10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 60km, LC, DDM
SFP-10G-BX60-SM1310	10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 60km, LC, DDM
SFP-10G-BX80-SM1490	10G bidi SFP+ transceiver module, Tx1490/Rx1550nm, 80km, LC, DDM
SFP-10G-BX80-SM1550	10G bidi SFP+ transceiver module, Tx1550/Rx1490nm, 80km, LC, DDM

Dimension

Product Packing

Compatibility Test

Bidi 10g Sfp+ Er , 10gb Single Mode Sfp Metal Enclosure Lead Free

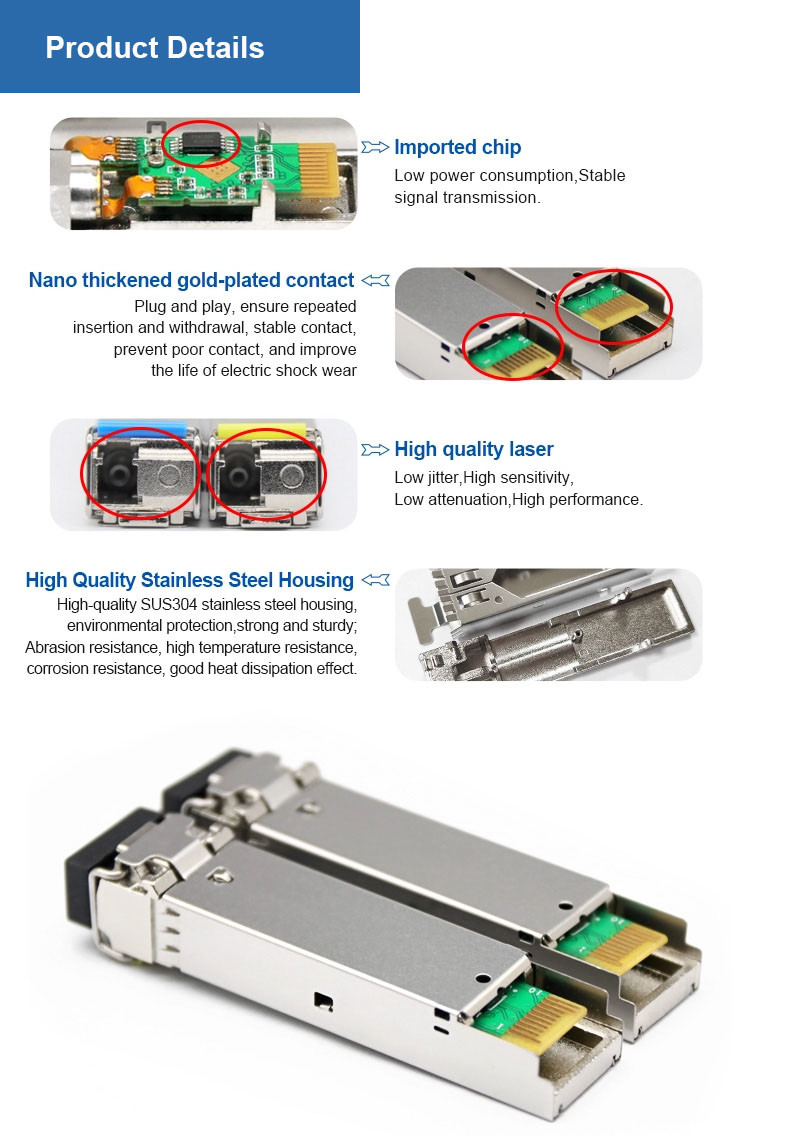

Product Details

Compatible Brands

Production Flow

For more details, welcome to inquire us freely.
