10g 80km SFP+ Transceiver Module Internal Calibration Simplex LC

Name: 10g 80km SFP Transceiver Module Internal Calibration Simplex LC
Brand: Mray
Price: 1 USD

Buy cheap 10g 80km SFP+ Transceiver Module Internal Calibration Simplex LC product

Brand Name : Mray

Model Number : SFP-10G-BX80-SM1490/1550

Certification : CE, FCC, RoHs, ISO9001

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 10000pcs/Month

Delivery Time : 1~2 days for samples

Packaging Details : 10pcs/plastic try, 500pcs per standard export carton

Product name : 10G BiDi SFP+ 1490nm/1550nm 80KM LC Optical Transceiver Module

Data Rate : 10Gbps

Wavelength : 1490/1550nm

Distance : 80km

Operating temperature : 0°C to 70°C

Warranty : 3 Years

Contact Now

10G BiDi SFP+ 1490nm/1550nm 80KM LC Optical Transceiver Module

Description

The Miray SFP-10G-BX80-SM1490 10G SFP+ ZR BIDI 1490T/1550R 80km single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-ER/EW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability. The SFP-10G-BX80-SM1490 module is designed for single mode fiber and operates at a nominal wavelength of 1490nm or 1550nm;.The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

Features

Data Rate: Up to 10Gbps bi-directional data links
Wavelength:Tx 1490nm,Rx1550nm
Distance:80km
Compliant with SFP+ MSA and SFF-8472 with Simplex LC receptacle
Digital Diagnostic Monitoring
Internal Calibration or External Calibration
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Commercial : 0 to +70°C Industrial : -40 to +85°C

Applications

SONET / SDH
11.2G ETHERNET
CPRI and OBSAI
Fiber Channel
Data Center
Other optical transmission systems

Recommended Operating Environment

Parameter	Symbol	Min.	Typical	Max.	Unit
Case operating Temperature	T_C	-5		+70	°C
Supply Voltage	V_{CCT, R}	+3.135		+3.465	V
Supply Current	I_CC			450	mA
Power Dissipation	P_D			1.5	W

Optical Parameters(T_OP = -40 to 85°C, VCC = 3.135 to 3.465 Volts)

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Transmitter
Operating Wavelength	λ	1470	1490	1510	nm
Operating Wavelength	λ	1530	1550	1565	nm
Ave. output power (Enabled)	PAVE	0		5	dBm	1
Side-Mode Suppression Ratio	SMSR	30			dB
Extinction Ratio	ER	9			dB
RMS spectral width	Δλ			1	nm
Rise/Fall time (20%~80%)	Tr/Tf			50	ps
Dispersion penalty	TDP			3.2	dB
Relative Intensity Noise	RIN			-128	dB/Hz
Output Optical Eye	Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength	λ	1530	1550	1565	nm
Operating Wavelength	λ	1470	1490	1510	nm
Receiver Sensitivity	PSEN1			-22	dBm	2
Sensitivity over 80Km fiber	PSEN2			-20	dBm	2
Overload	PAVE			-7	dBm
LOS Assert	Pa	-35			dBm
LOS De-assert	Pd			-24	dBm
LOS Hysteresis	Pd-Pa	0.5			dB

Ordering Information

Ordering Information
Model No.	Description
SFP-10G-BX10-SM1270	10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 10km, LC, DDM
SFP-10G-BX10-SM1310	10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 10km, LC, DDM
SFP-10G-BX20-SM1270	10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 20km, LC, DDM
SFP-10G-BX20-SM1310	10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 20km, LC, DDM
SFP-10G-BX40-SM1270	10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 40km, LC, DDM
SFP-10G-BX40-SM1310	10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 40km, LC, DDM
SFP-10G-BX60-SM1270	10G bidi SFP+ transceiver module, Tx1270/Rx1330nm, 60km, LC, DDM
SFP-10G-BX60-SM1310	10G bidi SFP+ transceiver module, Tx1330/Rx1270nm, 60km, LC, DDM
SFP-10G-BX80-SM1490	10G bidi SFP+ transceiver module, Tx1490/Rx1550nm, 80km, LC, DDM
SFP-10G-BX80-SM1550	10G bidi SFP+ transceiver module, Tx1550/Rx1490nm, 80km, LC, DDM

Dimension

Product Packing

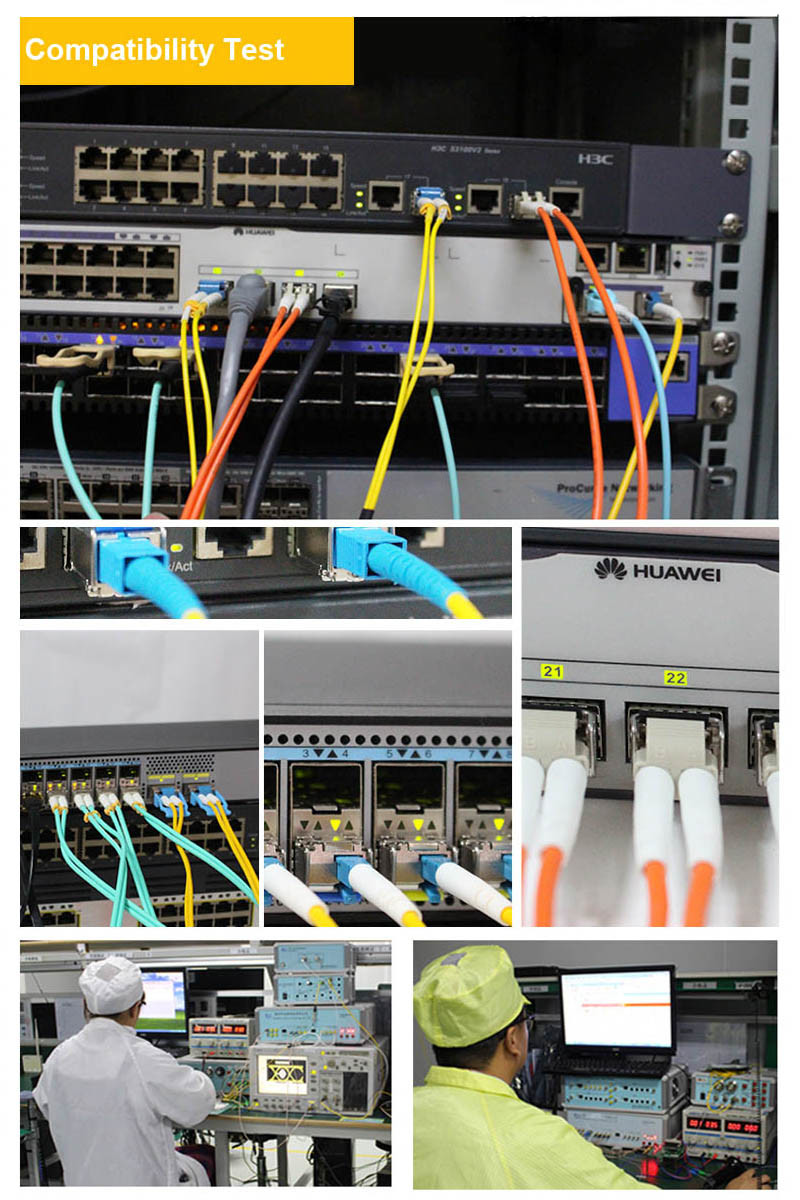

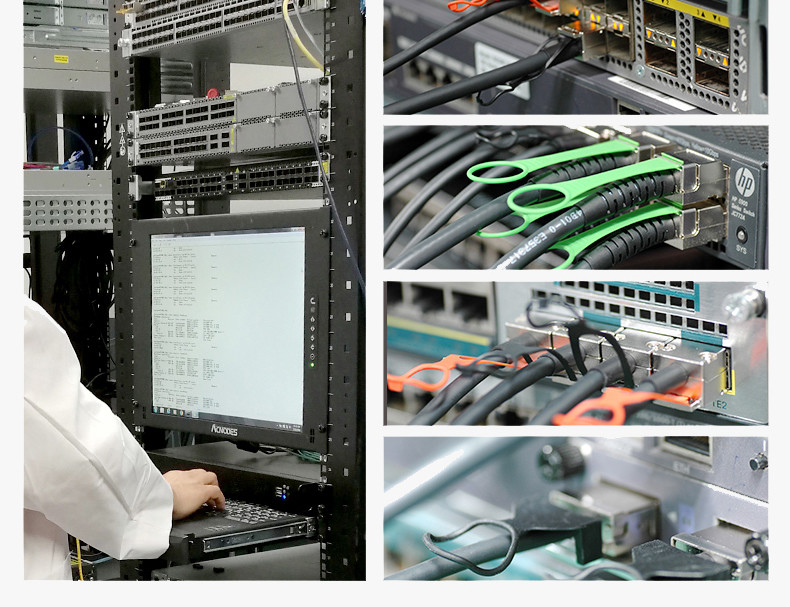

Compatibility Test

10g 80km SFP+ Transceiver Module Internal Calibration Simplex LC

Compatible Brands

Production Flow

For more details, welcome to inquire us freely.
